Capacitors are for general use in all types of DC and AC Applications. Capacitor housing is a metal case (commonly called BATHTUB) with mounting ears. The capacitor uses paper, oil impregnation and oil fill, providing long life. Using glass to metal end seals provide leakproof construction. They meet the electrical and life test requirements of MIL C-25, in case styles CP53, CP54, and CP55.
Capacitors are for general use in all types of DC and AC Applications. Capacitor housing is a metal case (commonly called BATHTUB) with mounting ears. The capacitor uses paper, oil impregnation and oil fill, providing long life. Using glass to metal end seals provide leakproof construction. They meet the electrical and life test requirements of MIL C-25, in case styles CP53, CP54, and CP55.
.25 to 2.0 uF
± 10% (Standard) ± 5% @ 60 Hz
600 VDC / 330 VAC & 1000 VDC / 440 VAC
-40°C to 85°C
1% MAX. @ 25°C
Electrification time of 2 minutes @ 500 VDC
| Temperature | MEG x MFD | Need Not Exceed |
| +25°C | 2,000 | 6,000 |
| +85°C | 20 | 100 |
10,000 hrs. @ 85°C at rated voltage
Terminal to Terminal 150% Rated Voltage
Terminal to Case 200% Rated Voltage
| PART NUMBER | DC VOLTAGE RATING | CAPACITANCE (uF) | CASE SIZE |
|---|---|---|---|
| 3G601-254 | 600 | 0.25 | A1 |
| 3G601-504 | 600 | 0.50 | A4 |
| 3G601-105 | 600 | 1.00 | B3 |
| 3G601-205 | 600 | 2.00 | C2 |
| 3G102-503 | 1000 | 0.05 | A1 |
| 3G102-104 | 1000 | 0.10 | A1 |
| 3G102-254 | 1000 | 0.25 | B1 |
| 3G102-504 | 1000 | 0.50 | B1 |
| 3G102-105 | 1000 | 1.00 | C2 |

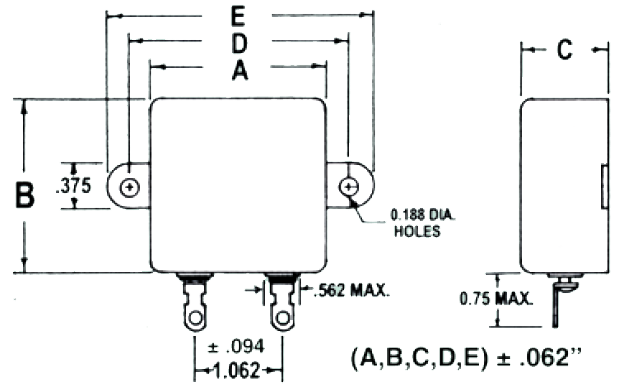

| CASE SIZES DESIGNATION | DIMENSION (INCHES) | ||||
|---|---|---|---|---|---|
| A | B | C | D | E | |
| A1 | 1.812 | 1.00 | 0.75 | 2.125 | 2.50 |
| A2 | 1.812 | 1.00 | 0.75 | 2.125 | 2.50 |
| A3 | 1.812 | 1.00 | 0.875 | 2.125 | 2.50 |
| B1 | 2.00 | 1.75 | 0.875 | 2.375 | 2.750 |
| B2 | 2.00 | 1.75 | 0.875 | 2.375 | 2.750 |
| B3 | 2.00 | 1.75 | 1.00 | 2.375 | 2.750 |
| C2 | 2.00 | 2.00 | 1.125 | 2.375 | 2.750 |
